Prefired Modules
HEL-UK – The prefired module system performs better and lasts longer than most other systems. High cost components are used where they give the greatest benefit to the user
Prefired Module

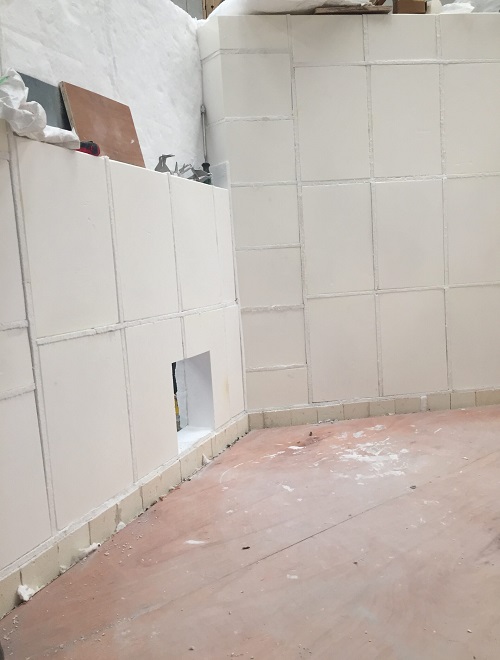

Prefired Module is a composite lining system for industrial furnaces and kilns.

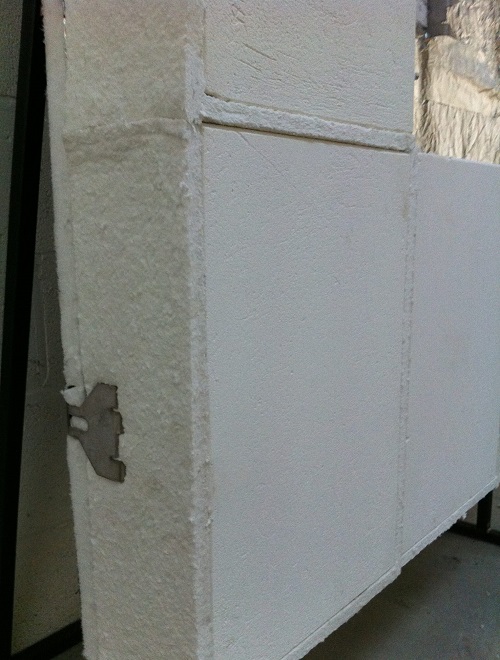

The system is based on a prefired vacuum formed five sided box which is filled with bulk insulation. The standard module is edged on two adjacent sides with Demex felt to seal against the next module. The standard size is 450mm x 305mm, thicknesses between 100mm and 300mm. It has a very low thermal conductivity and low heat storage. The system has been installed in over one thousand furnaces worldwide, and has proven long term performance and reliability. It can be used at temperatures up to 1575oC.
TYPICAL APPLICATIONS
GENERAL CHARACTERISTICS
- High temperature kiln and furnace linings
- Large petrochemical furnaces
- Brick and tile kilns
- Combustion chamber linings
- High Temperature stability
- Low thermal conductivity
- Excellent insulating performance
- Resistance to erosion/thermal shock
- Modules can be easily cut and machined
